Technical Specification
Flagship power. DX agility.
Boasting a level of power and precision that is up to the most demanding photographic tasks, this DSLR will go as far as you want to go. And even a step further.
Go further: image-defining speed
The D500’s supercharged performance easily captures decisive moments. You can shoot at up to 10 fps with AE/AF tracking, or with mirror up.
AF tracking and viewfinder visibility are vastly improved when shooting sports, or any scene in which subjects tend to change direction suddenly. Thanks to a new AF ASIC unit, maximum computing power is allocated to AF at all times. Faster sequential shutter and mirror mechanisms significantly reduce viewfinder blackout during high-speed bursts. The camera’s high-performance buffer allows up to 200 NEF (RAW) or large JPEG images to be captured during one burst. Two card slots (one for XQD cards, and one for SD UHS II cards), easily handle the camera’s incredible shooting speeds, and ensure the buffer is instantly cleared for the next burst. The USB 3.0 port enables high-speed transfer of large amounts of data, and the camera’s built-in Wi-Fi capability allows for rapid wireless image transfer. For those looking for an even faster transfer solution, the D500 is also compatible with the optional WT-7A, which enables transmission of files to an FTP server or computer at speeds of up to 866.7 Mbps.
Nail the shot: powerful metering and image sensors
Whether you’re capturing a cheetah on the run or the pivotal moment in the X Games, the D500 will get you the shot. And not just any shot.

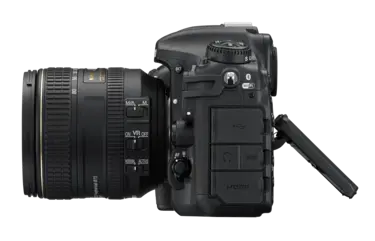

The 20.9 MP DX-format CMOS image sensor and 180K-pixel RGB metering sensor deliver phenomenally accurate subject recognition and image detail with rich tonal gradations. The D500 also boasts a highly responsive 8.0 cm (3.2 in.), 2359k-dot tilting LCD touchscreen monitor, which frees you to shoot from high or low angles. You can easily scroll through and select key images, and input credit, location, network, IPTC and copyright information on the spot. Shoot in Live View and you can use touch operation to set the focus point, release the shutter and acquire preset Spot White Balance data, based on the selected area within the frame. For even greater control, Picture Control 2.0 makes it easy to define parameters whether you’re shooting stills or video. Ease post-production with the Flat pre-setting for maximum dynamic range; fine-adjust detail with Clarity.
Not afraid of the dark: get the shots others can’t even see
The D500 isn’t intimidated by difficult light conditions.
Thanks to its exceptionally wide ISO range, this camera opens up a world of new shooting opportunities in dark situations and handles highlights incredibly well. Nikon’s new EXPEED 5 processing engine ensures unprecedentedly high image quality across the standard ISO range of 100 to 51200. Fine noise is dramatically reduced and even cropped images shot at high ISO values retain their quality. You can also extend the ISO range down to the equivalent of ISO 50 at the Lo 1 setting, or up to an incredible ISO 1640000 equivalent, at the Hi 5 setting. Combined with the camera’s AF system, which performs in near darkness (-4 EV at the central point), the Hi 5 setting lets you shoot in situations you might not have attempted before. These astonishingly high ISO counts, which enable colour images to be captured without a flash, are also suitable for specialist use in surveillance and security applications.
Cinematic 4K/UHD performance
As the first Nikon DX-format DSLR to record high-definition 4K/UHD movies in-camera, the D500 offers a whole new level of moviemaking flexibility. 4K/UHD movies (3840x2160 pixels) up to 29 minutes and 59 seconds long can be recorded at 30p/25p/24p in dot-by-dot native pixel crop, which ensures the highest image quality. Full HD (1080p) video can be recorded at frame rates up to 50p/60p in multiple sensor crop formats, including native Full HD pixel crop. Nikon’s electronic Vibration Reduction dramatically reduces the effects of camera shake when shooting Full HD movies handheld. When filming in M mode, sensitivity for all video resolutions and crop modes can be set from ISO 100 all the way up to Hi 5. Auto ISO allows ISO 200 up to Hi 5, and lets you set the maximum ISO values you want to work with. The camera offers clean HDMI out: even 4K/UHD movies can be recorded to the memory card or output uncompressed to HDMI with 8-bit 4:2:2 YCbCr. HDMI output is available for all movie resolutions during remote shooting. Other features include a built-in interval timer and 4K/UHD-quality time-lapse function.
DX agility: as tough as you need it to be
As the smaller sibling of the D5, the D500 can be relied on to perform when your photography takes you into extreme shooting environments.

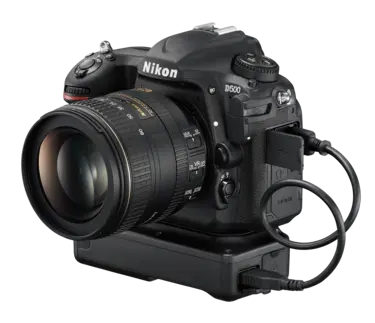

A tough metal chassis is fitted with rugged magnesium alloy and carbon-fibre parts to create a lightweight, durable body. All joints, buttons, and dials are fully weather sealed. An energy-saving design is employed to give you the maximum number of shots between battery charges. The optional MB-D17 Multi-Power Battery Pack supports three different battery power sources, and makes the camera easier to handle during vertical shooting. And the high-performance shutter has been tested for 200,000 cycles.

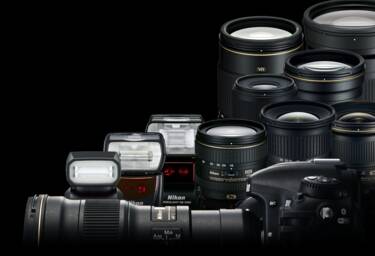

NIKKOR lenses: the DX telephoto advantage
Nikon’s legendary NIKKOR lenses provide unequalled clarity and versatility.
The D500 is compatible with the full range of DX NIKKOR lenses, and the 1.5x crop factor of the camera’s DX sensor delivers a telephoto effect when shooting with an FX lens. Pair the D500 with the AF-S NIKKOR 80–400mm f/4.5–5.6G ED VR lens, and the angle of view at the tele setting is equivalent to that of an FX-format DSLR fitted with a 600 mm telephoto lens. Compared to the full-frame combination, this cuts both the weight and length of your telephoto setup approximately in half—a serious advantage if you want to travel light. Now you can project yourself into the heart of the action, or bring your focus right to the edge of a hard-to-reach bird’s nest, without the handling issues associated with heavier professional kit.
Lighting the shadows
The D500 is fully compatible with Nikon’s acclaimed iTTL/Creative Lighting System and Nikon's new radio-controlled Advanced Wireless Lighting system.
You can easily use the D500 with Speedlights such as the professional SB-910, the compact SB-700, or the SB-5000, which utilises radio control technology. When combined with the optional WR-R10 transceiver, the D500 can control and wirelessly fire up to six groupings of SB-5000 units from another room, around corners, or outdoors in bright sunlight.
Find out how you can easy it is to share amazing images and bring your social networking sites to life in seconds with Nikon Snapbridge. Always connected!
¹ The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Nikon and its Affiliates is under license.
² Wi-Fi® and the Wi-Fi Certified logo are registered trademarks of Wi-Fi Alliance®.
The camera’s Bluetooth® and Wi-Fi® capabilities are only available when using SnapBridge. Nikon’s SnapBridge application must be installed on a compatible smart device before SnapBridge can be used with this camera.
Material code
D500 - VBA480AE
